What to Ask For Pre Wiring Your New House

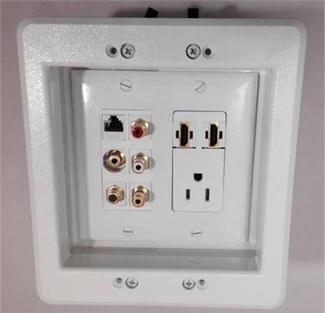

TV & Telephone Wiring Outlets

If you are building a home, you probably want to plan it for home

electronics now, and for the future.


  • Here are some simple things to consider:
  • Will you want music around the house?
  • Will you have a computer more than one computer?
  • Will you have TV via antenna, cable, satellite, or all of these?
  • Will you want room-to-room control?
  • Will there be adequate telephone jacks?
  • Will there be a home theater? With surround sound?
  • ​Is paging, door answering a consideration?
  • Would you prefer one set of controls for lighting, temperature, music, video, etc.?


Wiring for a Legendary Sight & Sound smart home is simple and straightforward. Commonly available wiring is used. Legendary Sight & Sound's commitment to open design gives you many choices for equipment connections. All wires should be home run to a central location (such as a utility closet, entertainment center or similar location). Generally, telephone and TV wiring can be separated from the audio wiring but many homes choose one central location. Here are some simple suggestions:

Services below are available for residential, light commercial, and office projects

Most builders are not electronic specialists. They certainly know more about home construction than about home systems. That is why you will need to be persistent in most cases to get what you want. Many builders focus only on TV and telephone outlets and their placement. You may need to make sure you are getting all that you need and want.

Suggested Wiring & Options When Pre Wiring Your New House

Lots of decisions need to be made, however; these decisions are typically not high on the priority list of a new home-owner during the early stages of building a home. Thinking about the modern conveniences of home electronics is sometimes put off until it is too late or at the very end making it more costly to go back in to do the concealed wiring. If you examine a few of your preferences early on before the drywall goes up, your electronic "after life" can be a lot more fulfilling.


Pre-wire for today and the future!



TV and telephone outlets should be home run to a central location (that is, each wire should terminate at a common central point). This facilitates easier changes in the future and provides the purest signal quality. For telephone, ask for data grade, category 5 wiring. This will serve your internet requirements better. For TV, the RG-6 cabling is superior and carries a higher bandwidth rating as well. Some people often ask about fiber optics. This cable is generally more expensive and competing standards do not necessarily make it a wise choice. With the great number of coax and telephone wired homes, the best bet is CAT5 and RG-6.

Pre Wiring Installation Services

New Construction Pre Wiring Installation

At Legendary Sight & Sound, we deal with things related to electronics and wiring installation. One of the services that we offer is the pre wiring installation for all kinds of electronic equipment and networking needs in under construction new and commercial properties.

When a new property is being built whether it is a house or an office, the wiring you put in is a crucial factor. Each and every household and office has a large number of personal and official electronic gadgets that need to be connected individually or amongst each other. It’s important that wiring installation is completed properly during construction.

Low-voltage Integrated Wiring Guide For New Construction

  • Run CAT 5 or better wire for telephones and data lines. This will provide for four lines to each location.
  • Run RG-6 coax to all TV and touch panel locations. Dual runs of these wires make future expansion a possibility.
  • When running audio wires run four conductor (16/4 or better) through all keypad, volume control and touch-panel locations. This provides the best flexibility in the future. Then run 16/2 to each speaker location.
  • Run CAT 5 for control wires to each keypad, volume control and touch panel location. This will allow IR and network control of these devices.
  • Incoming service lead wires will need to be run for telephone, cable, satellite, door speakers and any cameras.
  • If a computer network such as a LAN is planned, run separate CAT 5 wire for this purpose.
  • If lighting control is a desired upgrade, most manufacturers have control wires that need to go to the control locations of your choice.
  • Control wiring for security and HVAC systems, you should consider interface wiring for house wide control systems.
  • Pre wiring installation for network purposes
  • Pre wiring installation for sound and audio devices
  • Pre wiring installation for TV’s and projectors
  • Pre wiring installation for phones and security systems
  • Any other additional wiring installation required by the customer based on specific needs.


Why choose Legendary Sight & Sound?

We have a team of expert installers who are trained in all kinds of wiring installation. We offer:

  • Competitive prices
  • Knowledgeable input by our expert team
  • Estimates with regard to how and what type of wiring installation will be suitable based on the client’s needs
  • Personalized, high quality service


The best time for wiring installation is when the property is under construction.
